Balcony glazing STANDARD

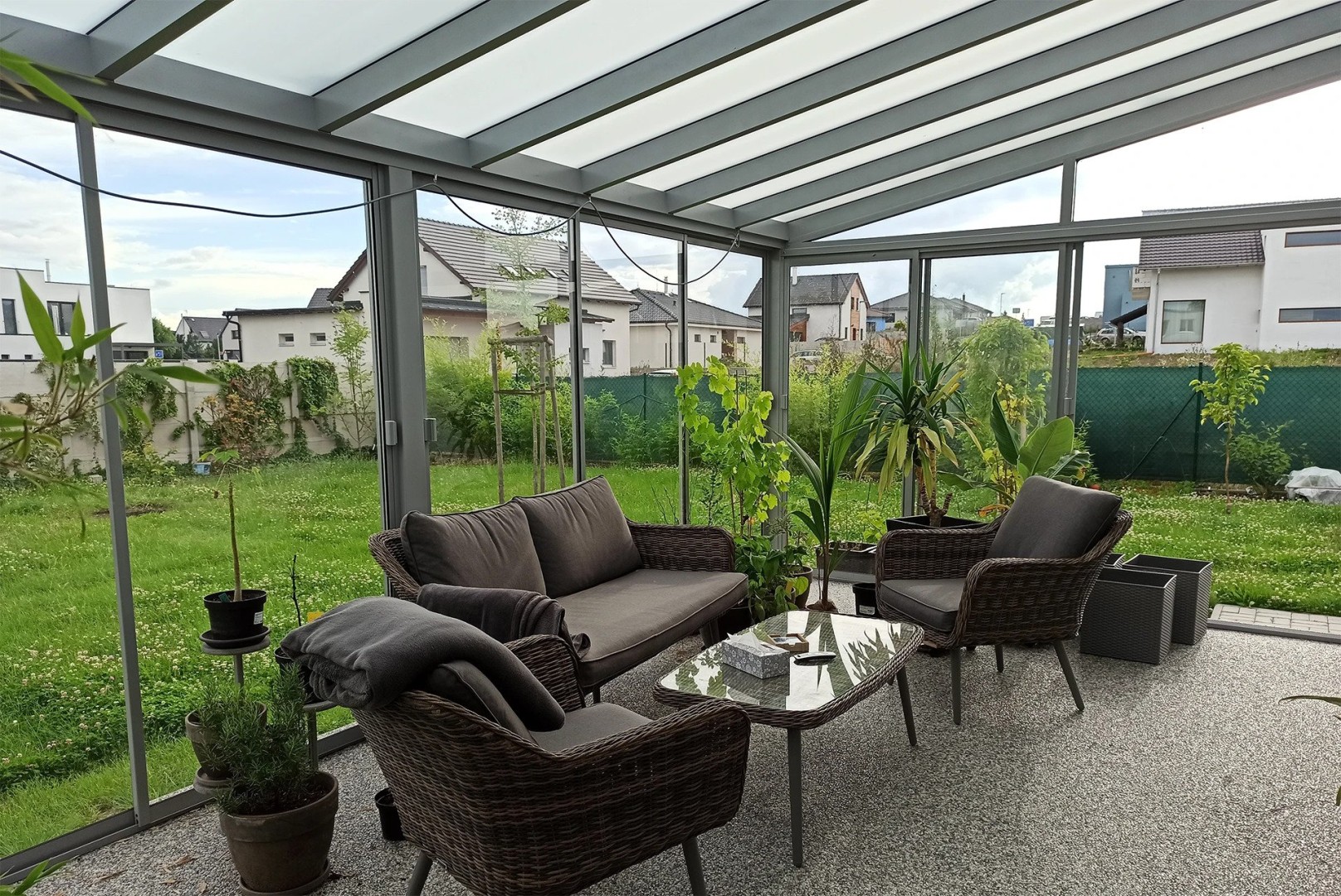

The STANDARD frame system is the most commonly used type of glazing for balconies, loggias and pergolas. With this system, it is also possible to enclose terraces, pergolas and other open spaces. It is a system where the glass slides along a 2, 3 or 4-row rail and gradually folds behind itself. For side glazing of balconies, a two-row system or fix- frame is used with the option of choosing different clear, frosted and opaque glasses. The window frames are made of aluminum, sealed between them with a mohair gasket. The running rollers are made of stainless steel - a material with a long service life.
With the STANDARD frame system, we offer the option of supplying shading technology or nets against insects.
The frame system is less likely to leak and at the same time is less noisy during strong winds compared to frameless systems. Manipulation with glazing is simple, fast and physically undemanding. By glazing the balcony or loggia, you will not only have a new space for relaxing on warm days, but also a new additional storage space throughout the year.
Benefits
Technical information
 |
Maximum wing width 1000 mm |
 |
Included in the price color version anthracite, gray, white and brown |
 |
Maximum recommended wing height 2600 mm |
 |
Sliding system 2,3,4 in one row or 4,6 and 8 wings in a curtain |
 |
Two-track or three-track system |
 |
Preparation for shading system |
STANDARD glazing construction
Sliding 2, 3, 4 and 8 wings, option of 2, 3 and 4 tracks.
Maximum wing dimensions: width 1000 mm and height 2600 mm (with insulating double glazing).
Maximum wing weight: 50 kg.
Heat transfer coefficient: Uw from 5.7(W/m²K)
Sound insulation:
Maximum glass thickness 16 mm
Glass composition: 6mm, 6-8-6 IZO
Maximum sound insulation Rw = 32 dBA
