Terrace glazing DELUX
The frameless DELUX system even by its name evokes the assurance of an unobstructed view from the enclosed space of your terrace or balcony. It currently belongs to the most modern types of glazing. The system consists of glass filling inserted into 2, 3 and 4-row bilaterally movable rail systems. The filling consists of 6 mm or 10 mm tempered glass, the thickness of which is determined according to the total height of the glazing. The surface of the aluminum profiles is treated with a powder firing varnish, which ensures their long service life and anti-corrosion protection. This system is suitable not only for glazing winter gardens and pergolas, but also balconies or loggias.
Its advantage is that with a glass thickness of 10 mm you can glaze the space with a height of up to 2.60 m.
Benefits
Technical information
 |
Maximum wing width 1200mm |
 |
Anthracite, gray, white and brown colors are included in the price
|
 |
Sliding system 2,3,4 in one row or 4,6 and 8 wings in a curtain |
 |
Rail height 25mm |
 |
Maximum wing weight 50kg |
 |
Preparation for shading system
|
Glazing DELUX construction
Sliding 2, 3, 4, 6 and 8 wings. Option of 2, 3 and 4 tracksMaximum wing dimensions:
Maximum wing weight: 50 kg
Heat transfer coefficient: Uw 5,7 (W/m²K)
Sound insulation:
width with 6 mm glass 1000 mm, with 10 mm glass 1200 mm height with 6 mm glass 1800 mm, with 10 mm glass 2600 mm
Maximum wing weight: 50 kg
Heat transfer coefficient: Uw 5,7 (W/m²K)
Sound insulation:
Maximum glass size 10 mm
Maximum sound insulation Rw = 30 dBA
Maximum sound insulation Rw = 30 dBA
Product realizations
Take a look at some of our realizations and get an overview of the quality of our production

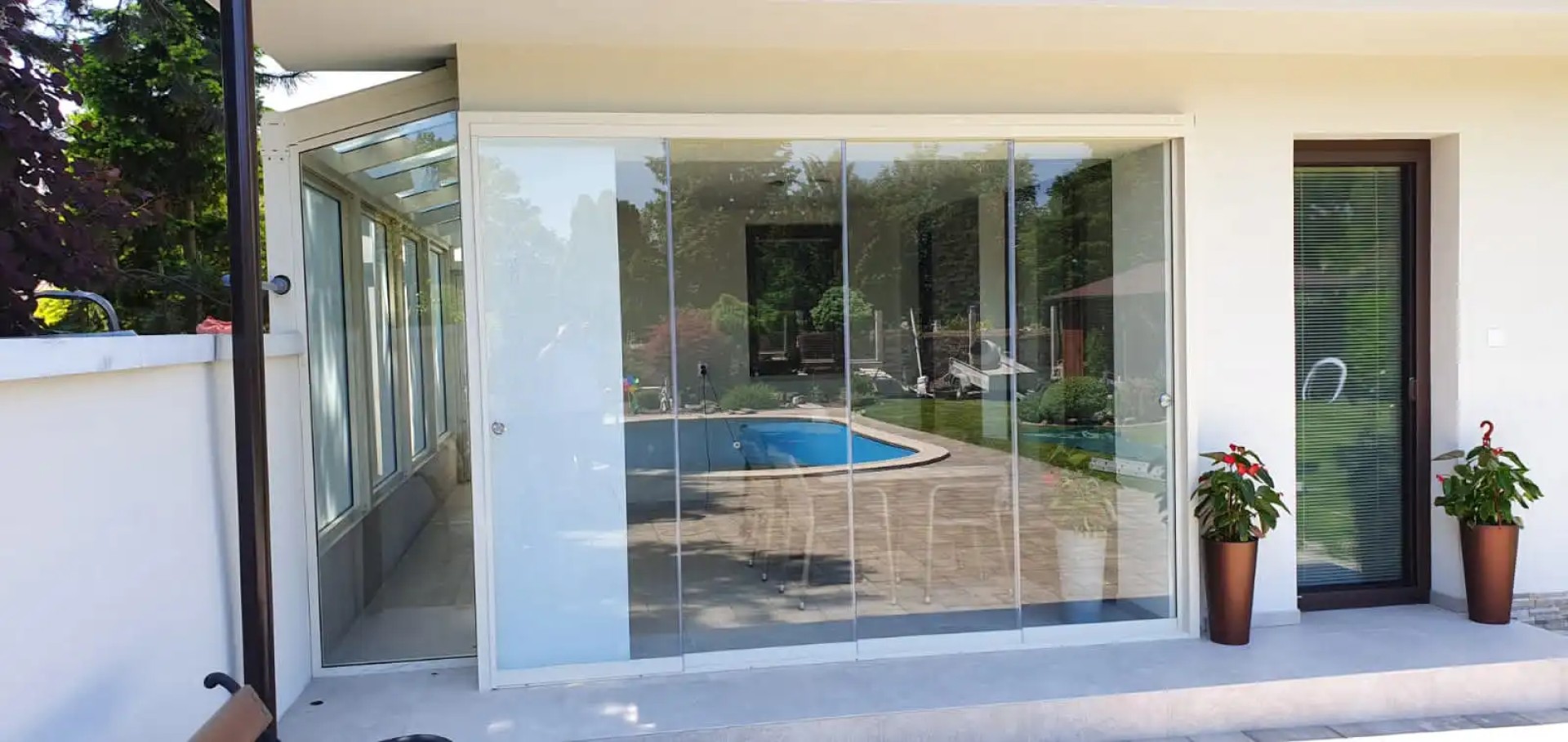

DELUX glazing
Slovakia
View
