Aluminum pergola ROBUST
The ROBUST aluminum pergola already by its name predetermines the massive construction of the pergola.
Drainage gutters built into the columns will take care of the smooth drainage of water even during the heaviest rain, the reinforced gutter profile with a double wall at the head of the structure will allow you to increase your user comfort if necessary by converting the pergola into a winter garden, which you can use from early spring to late autumn.
It is an ideal choice if you desire massive lines and at the same time leaves you with a choice if you decide to convert your pergola into a winter garden, as it can be easily glazed.
Benefits
Technical information
 |
Maximum module width 7500 mm |
 |
Anthracite, gray, white and brown colors are included in the price |
 |
Weather protection |
 |
Snow load up to 2.25kN/m2 |
 |
Integrated LED lighting in the roof of the aluminum pergola |
 |
Preparation for the roof and wall shading system |

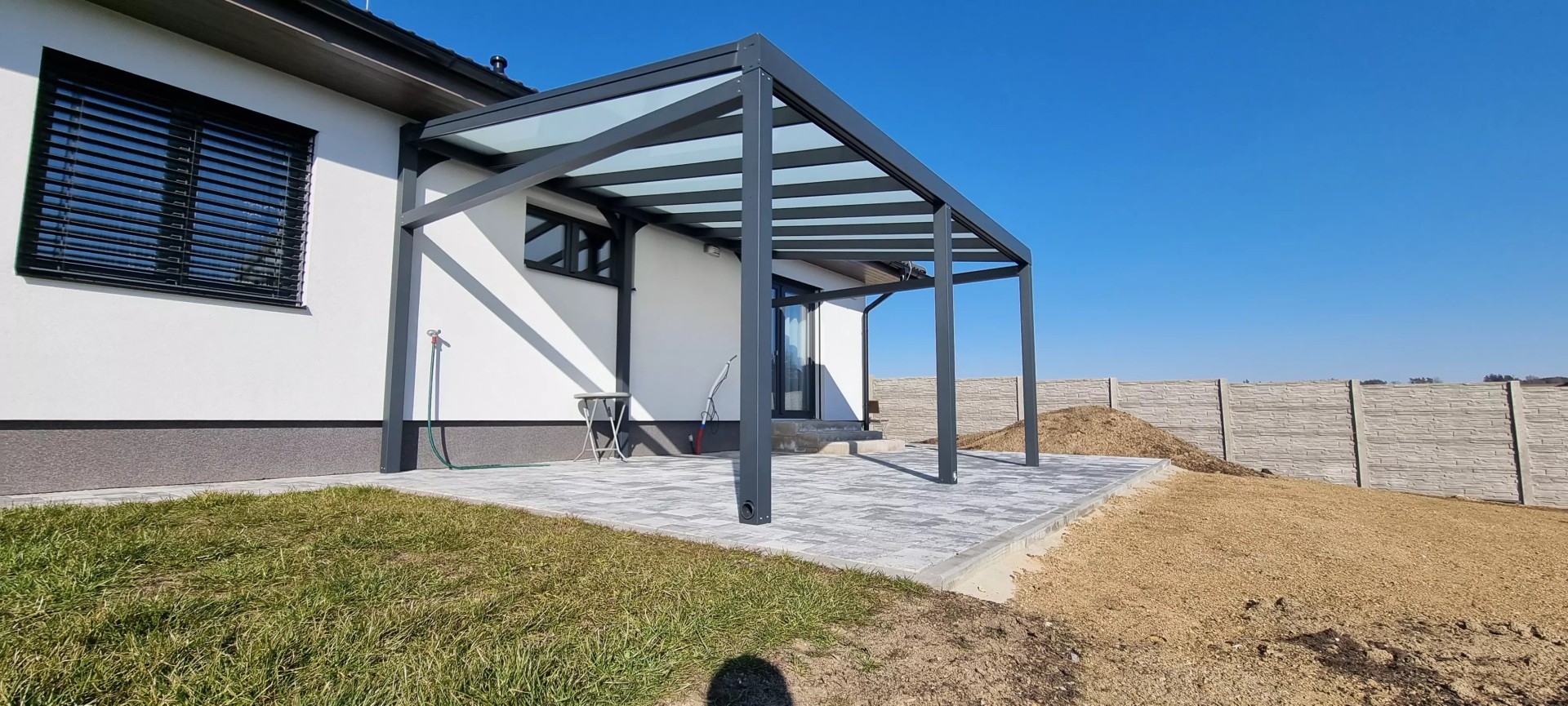

ROBUST pergola construction
The profiles are designed in such a way that not only the statics are preserved, but also the design. The distance between the load-bearing profiles in the roof is between 650 mm and 750 mm due to the increase in the static load.
The construction is designed for loads from 150 to 300 kg, depending on the length of the truss. The pergola is anchored to the wall of the house or free standing.
We will custom-make different shapes for you so that our pergolas fit your house like a glove. In addition to the classic slanted pergola, we produce atypical roof shapes such as U, L, corner pergola or gable roof.
Robust pergola construction types
We make the ROBUST aluminum pergola to measure for each customer. We will design the construction of the aluminum pergola according to the planned location.
Maximum dimensions of the module: Width 7500 mm, depth 6000 mm (with reinforcement).
When the width is over 4500 mm, the pergola includes 3 front columns.
The system offers the possibility of reinforcing the gutter profile to maintain maximum comfort without a central column above 4500mm.
For heavier loads, stainless steel plates for heavier loads are part of the reinforcement.

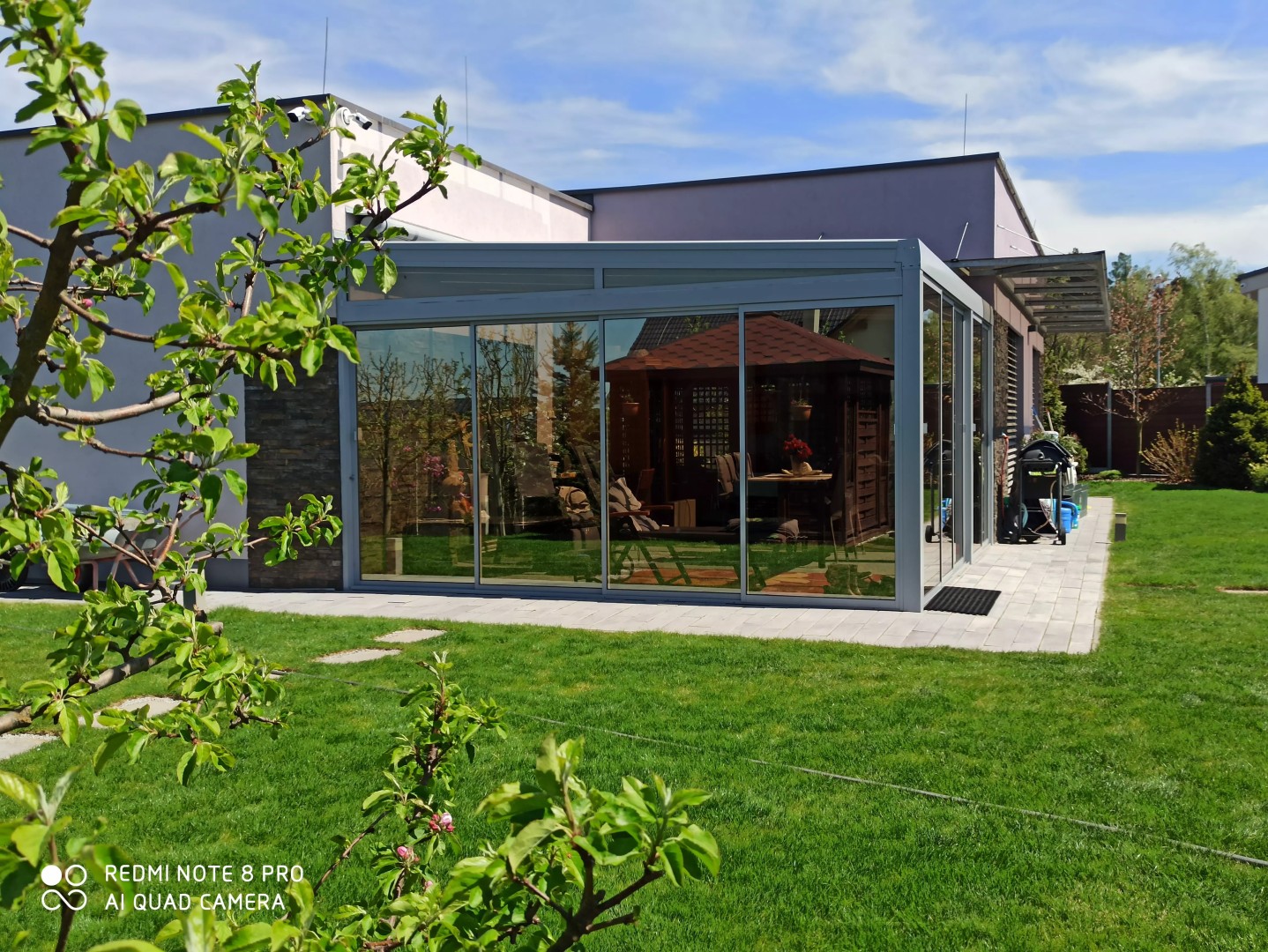

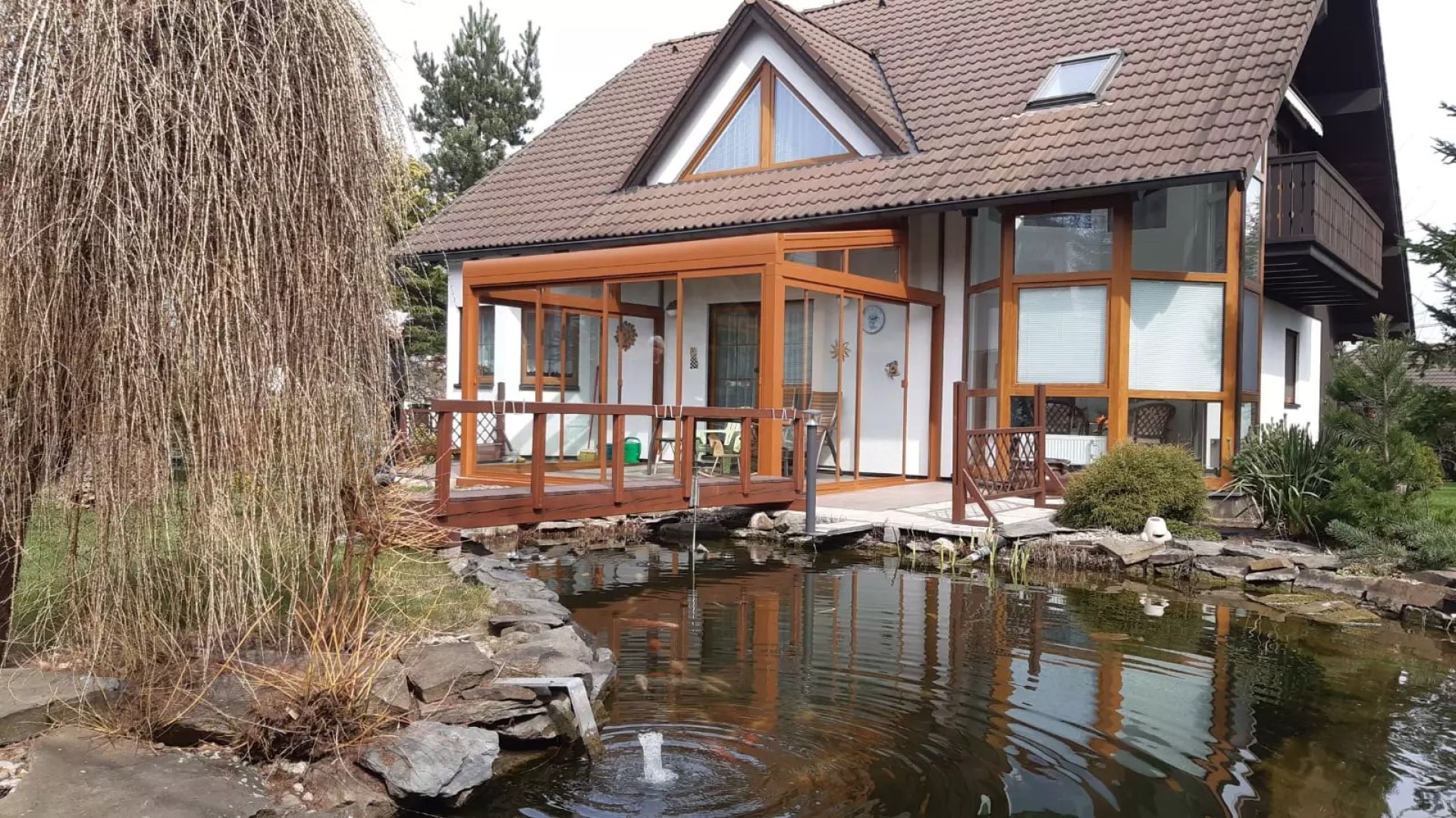

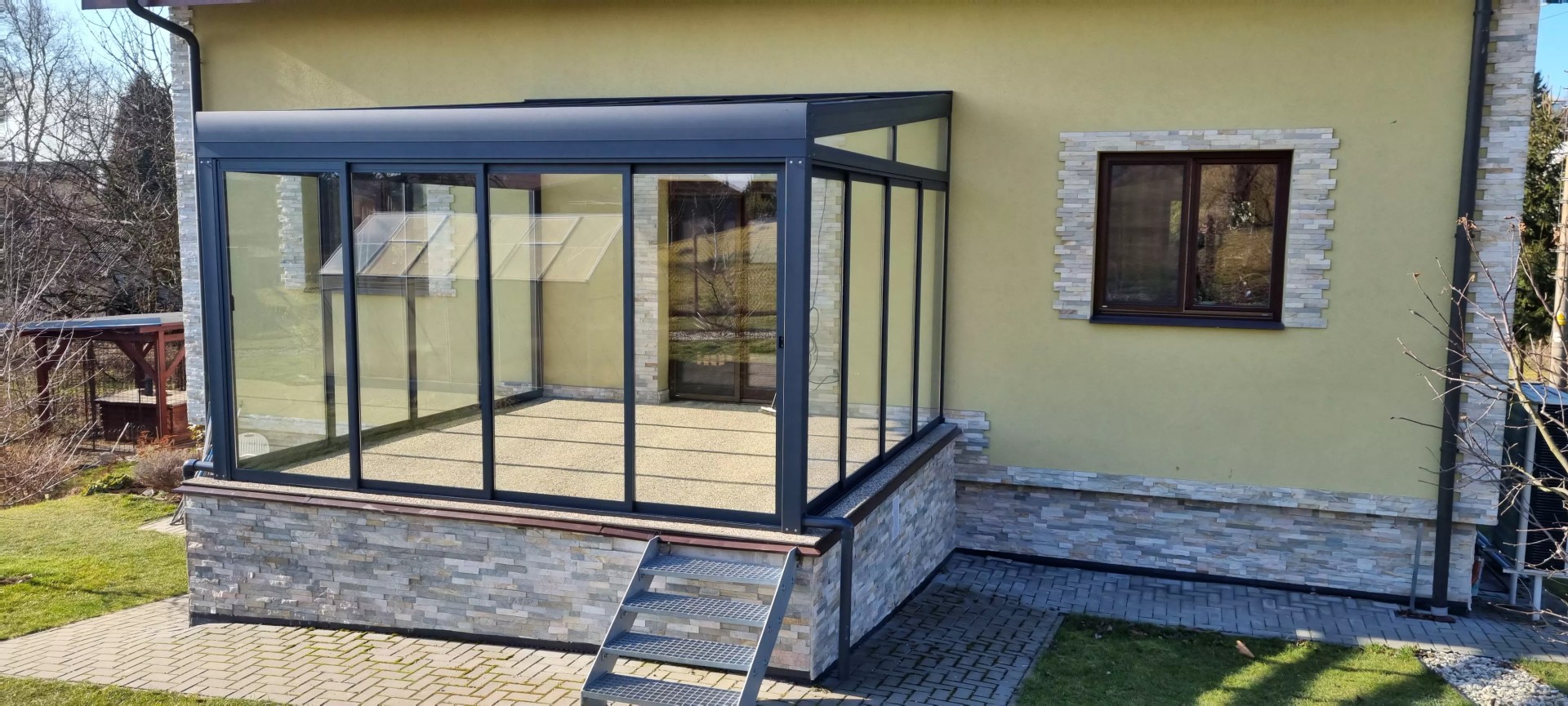

Robust pergola glazing
Several glazing systems with different fillings are available for glazing aluminum pergolas. Frameless systems that provide an unobstructed view of the garden are popular. For high demands on insulation properties, we recommend the ROBUST system.

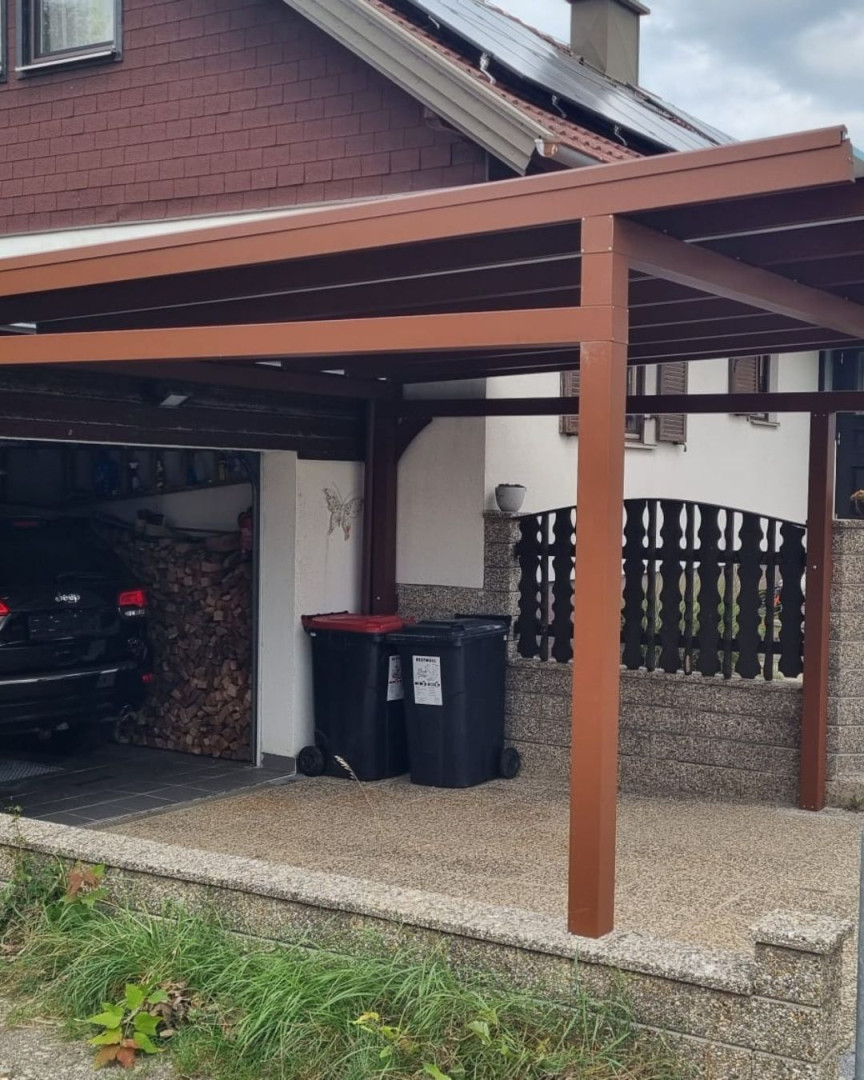

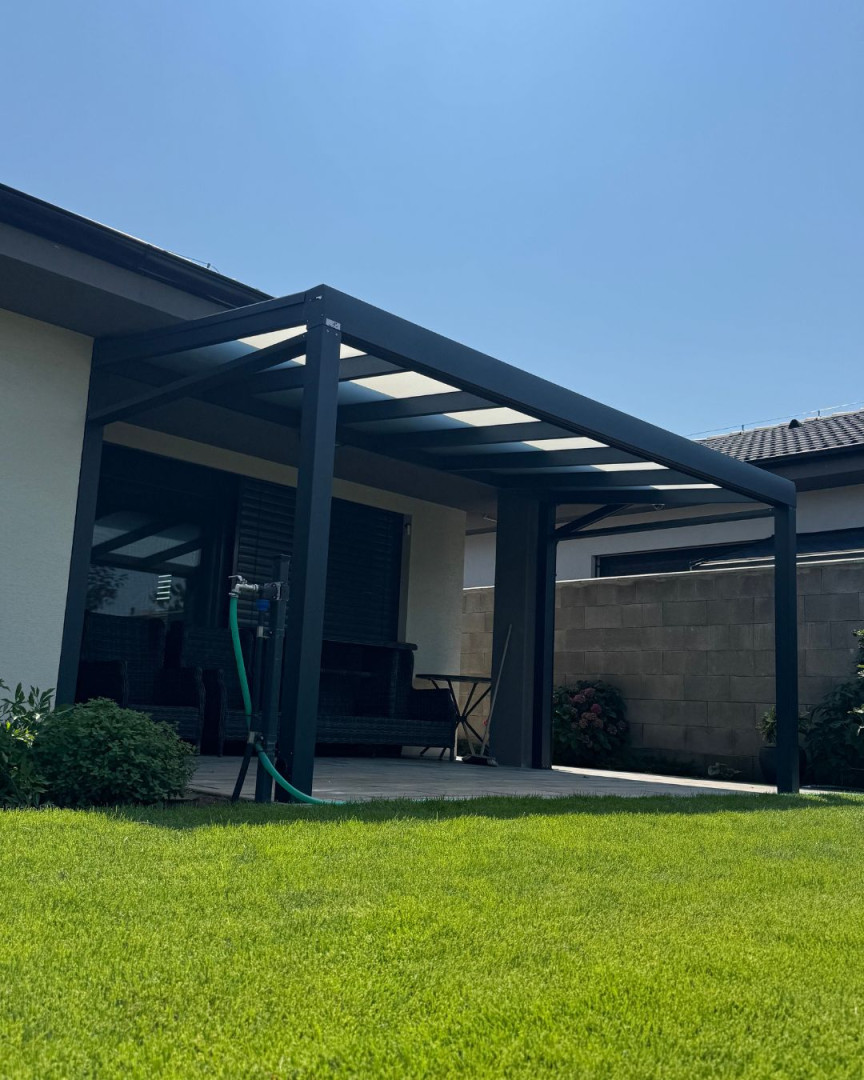

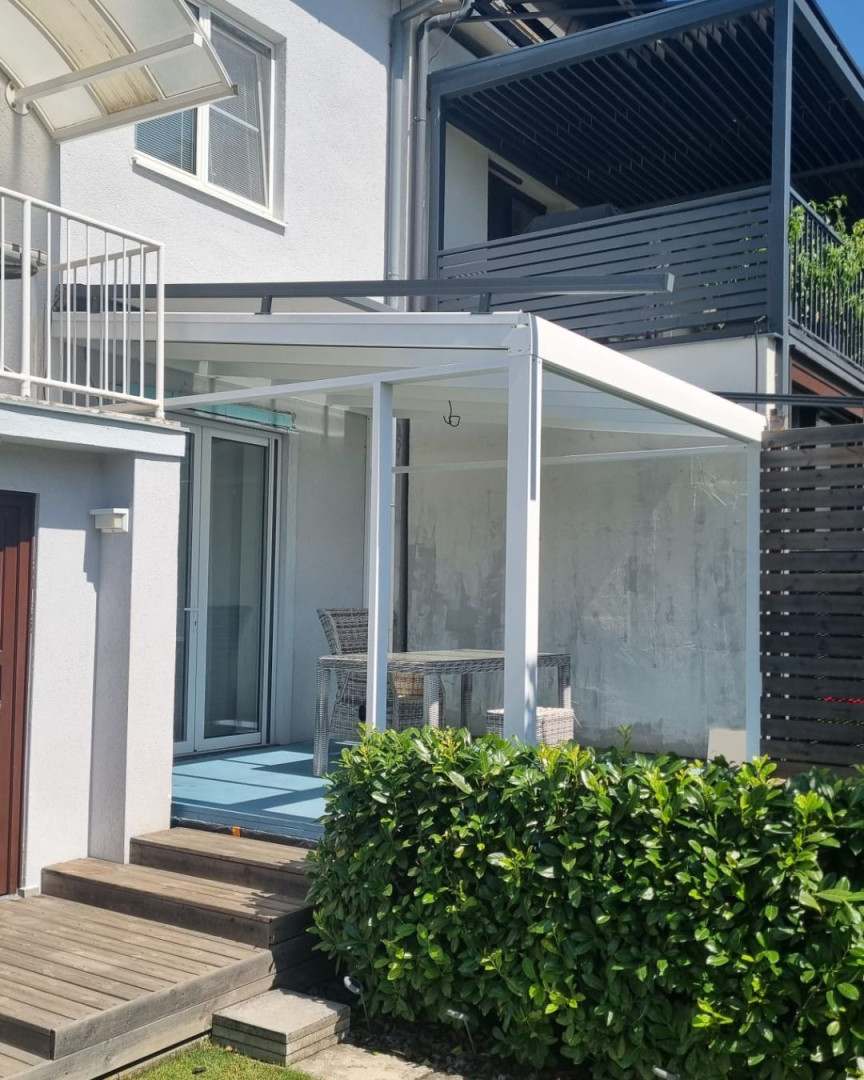

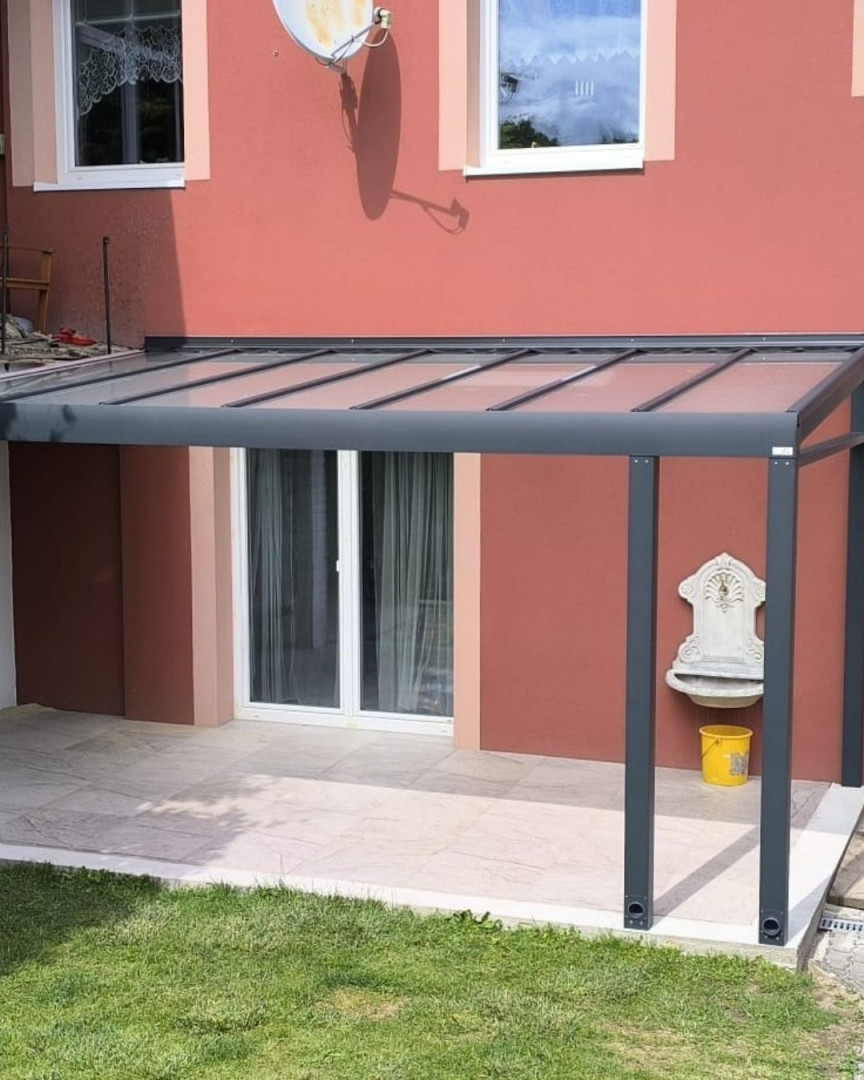

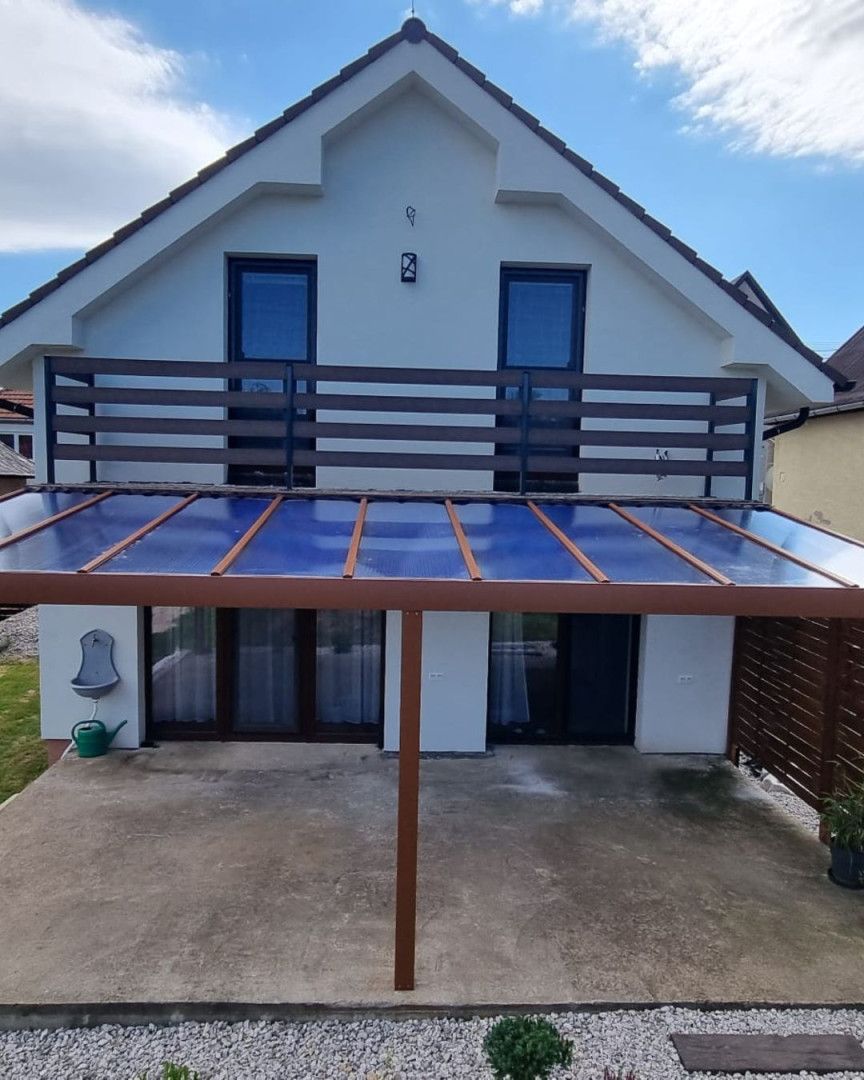

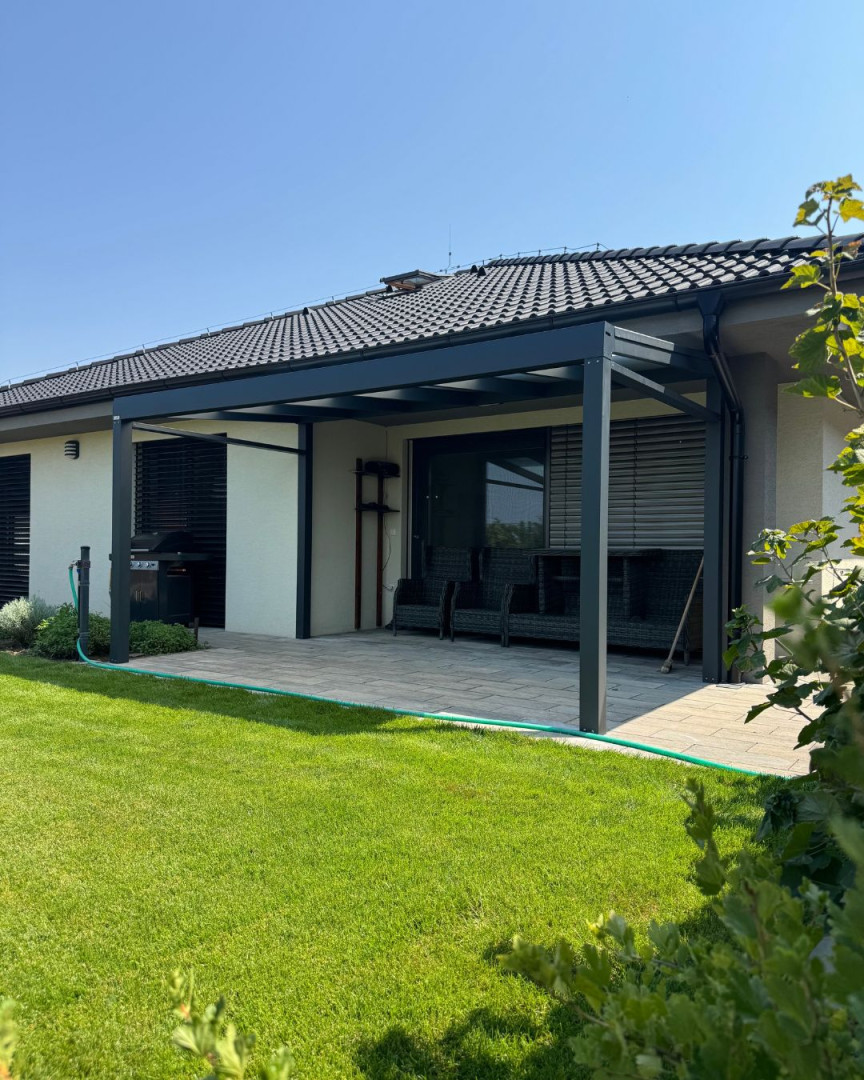

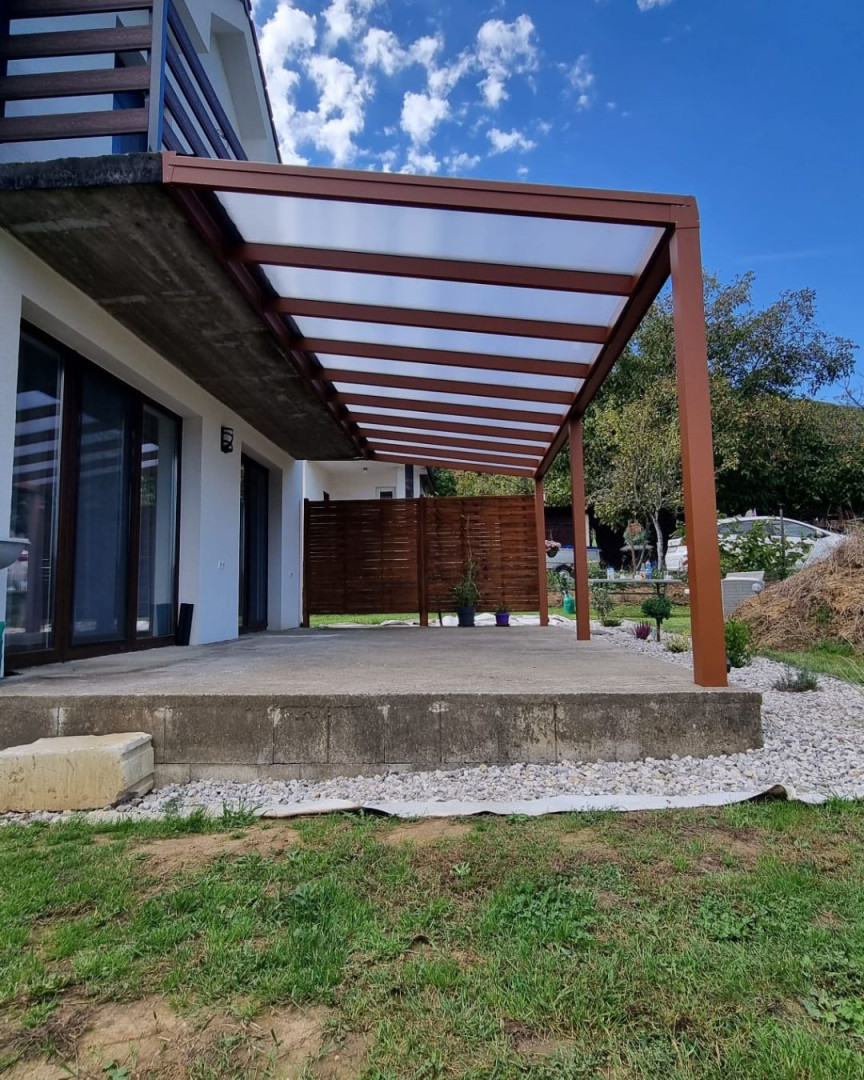

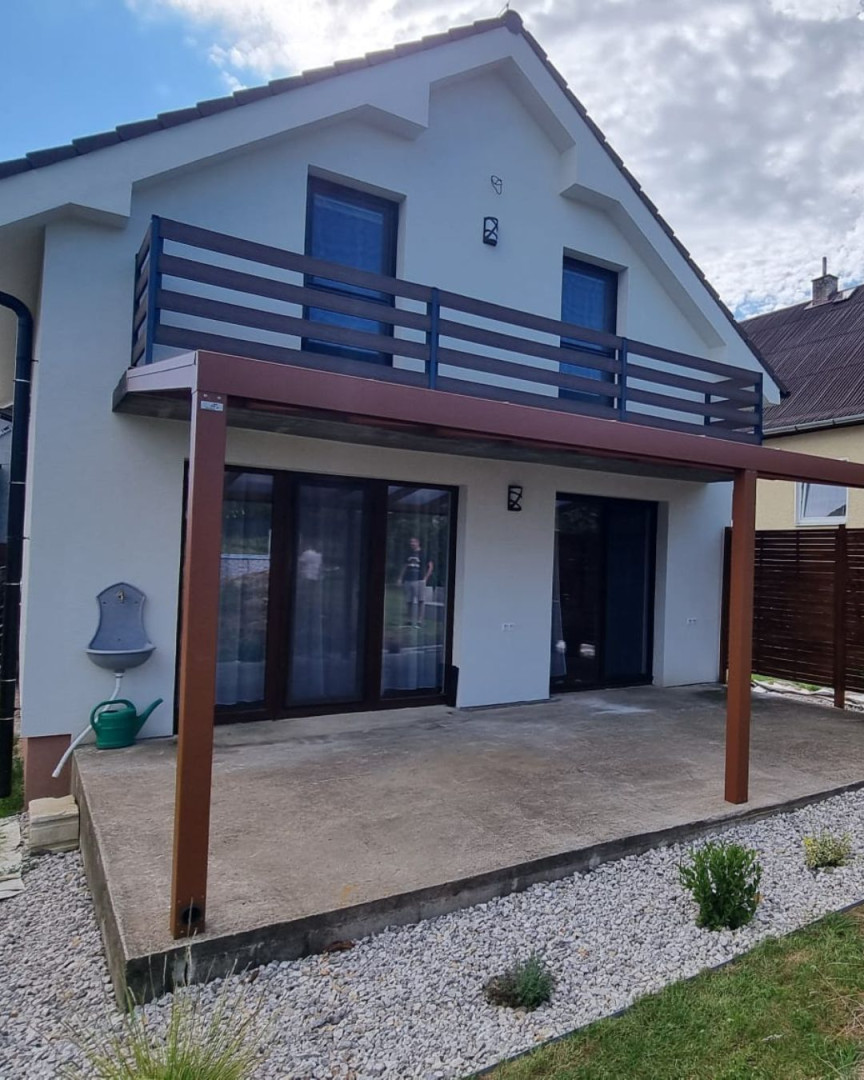

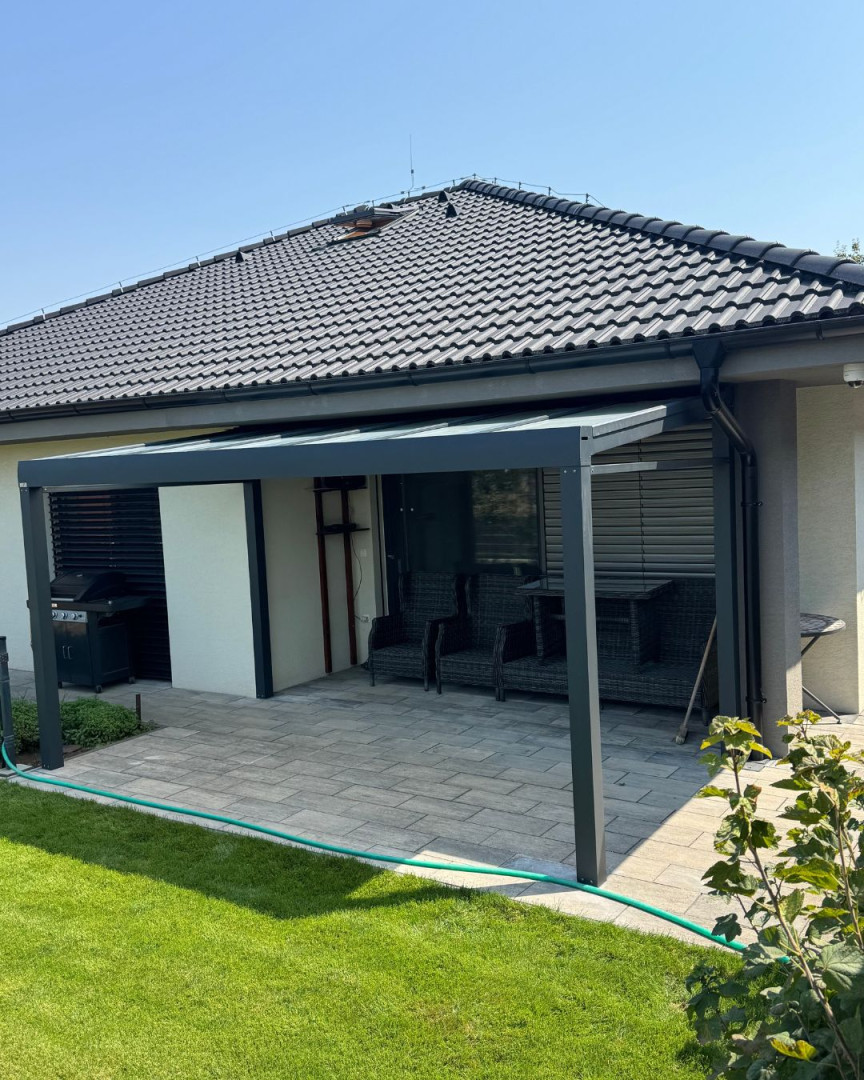

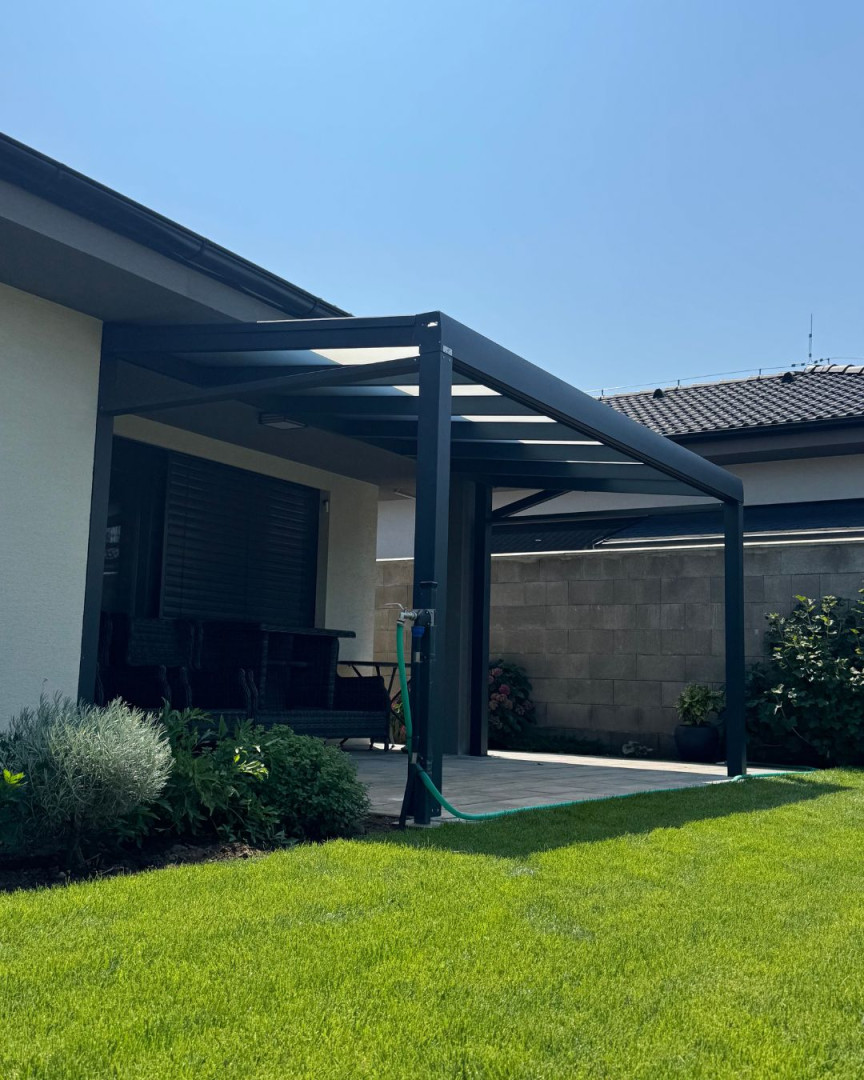

Product realizations
Take a look at some of our realizations and get an overview of the quality of our production
Záhradná hliníková pergola
ALUMINIUM PERGOLA ROBUST - JIHLAVA

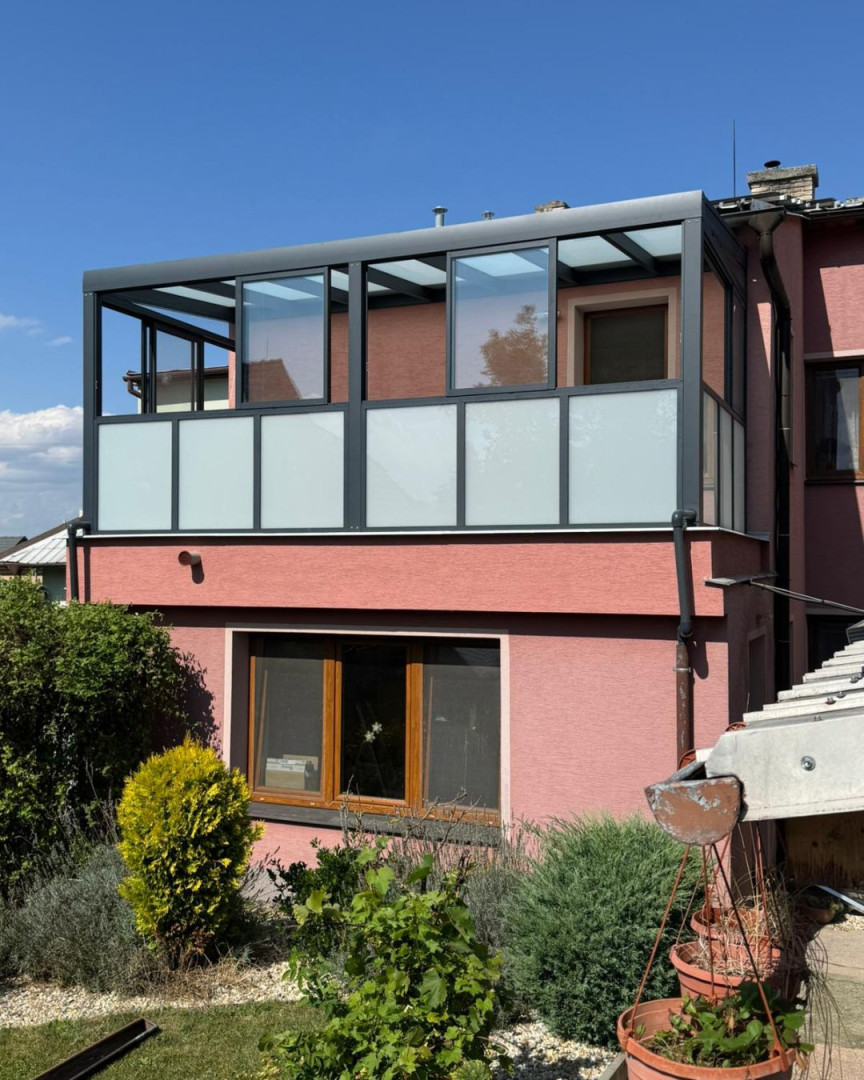

ALUMINIUM PERGOLA ROBUST + GLAZING STANDARD - SPIŠSKÁ TEPLICA
