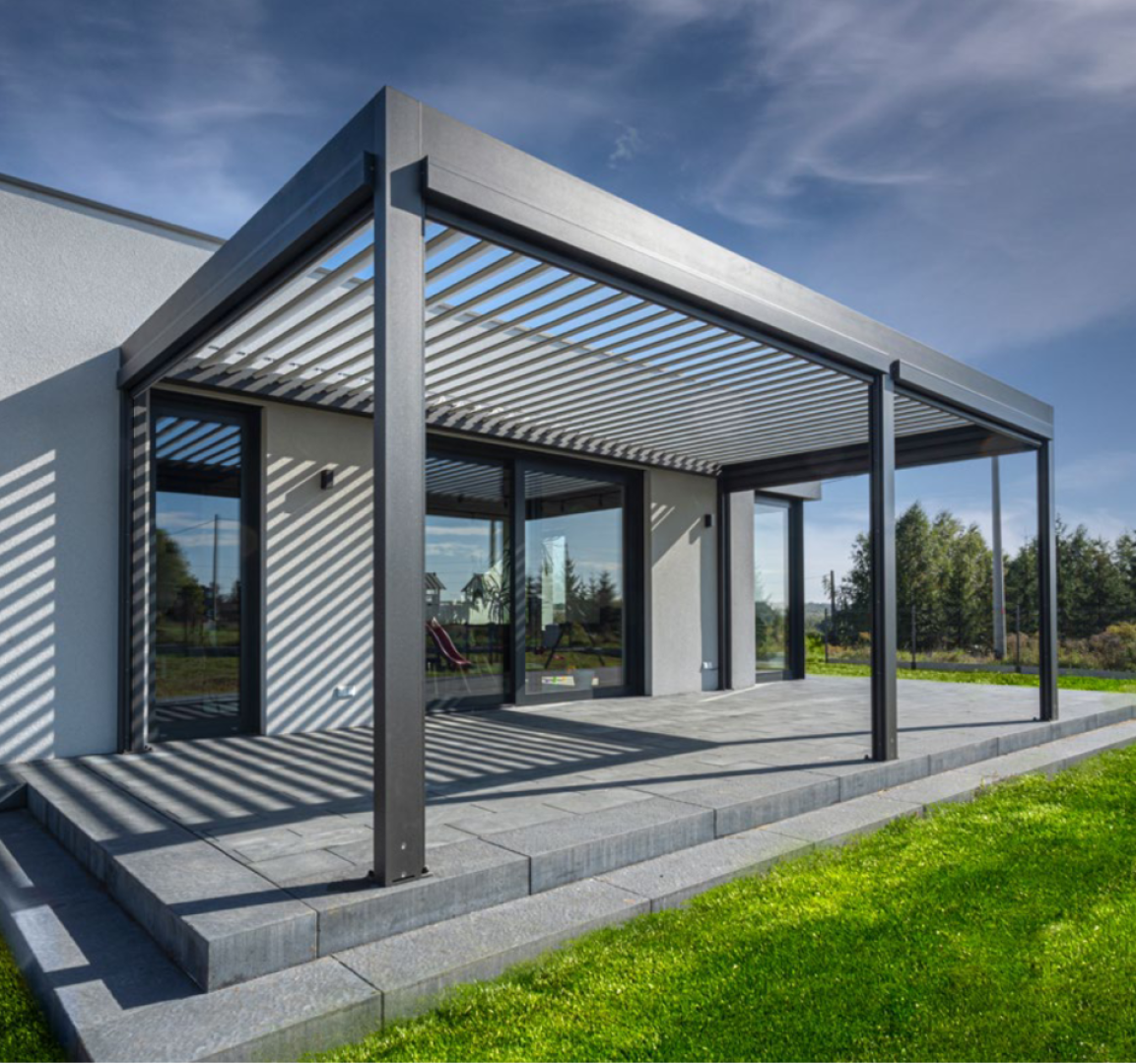

Pergola SUNBEAM 400

The SB 400 bioclimatic pergola combines modern design, precise workmanship and high functionality in one solution. It is designed to provide reliable protection from the sun and rain and create a comfortable space for relaxation throughout the year.
The structure consists of a combination of extruded aluminum profiles and stainless steel elements, which guarantees maximum strength and durability. All parts of the pergola are painted in any RAL color, which allows for harmonious integration into any exterior.
The pergola roof is equipped with a slat system with the ability to adjust the angle of inclination (90° or 120° depending on the type of motor), thanks to which you can easily regulate the penetration of light and air circulation. When it rains, the slats close automatically and the integrated drainage system reliably drains water through the columns outside the space under the pergola.
The SB 400 Pergola can be implemented in a wall-mounted or free-standing version, with the maximum dimensions of one module reaching a width of 4.0 m and a projection of 7.0 m. The structure is processed in accordance with the EN 1090 and EN 13659 standards, thus meeting the highest technical and safety requirements.
An interesting feature is the additional chamber in the beam, which allows the use of an invisible overflow system between the gutters - available with up to four gutters. The pergola can also be supplemented with optional LED lighting around the perimeter or light points directly in the slats. Comfort is complemented by weather-responsive automation and the option of solar power for ecological operation.
Benefits
Features:
- Construction made of extruded aluminum profiles and stainless steel elements
- Construction with integrated drainage system
- Sun and rain protection system
- Possibility of using weather-dependent automation
- Painting of the structure and roof in any RAL color (optional)
- Roof made of slats with the possibility of changing the angle of inclination
- Maximum dimensions of one module: width 4.0 m, extension 7.0 m
- Minimum dimensions of one module: width 1.4 m, extension 1.4 m
- Option of wall-mounted and free-standing construction
- Construction in accordance with EN 1090 and EN 13659 standards
- Additional chamber in the beam allows the use of an invisible overflow system between the gutters (option with 4 gutters)
- Optional LED lighting around the pergola or light points in the slats
- Optional solar drive
- Slat rotation angle 90º or 120º (depending on the model motor)
- Color: RAL
Electric drive: Yes
Maximum extension: 7 m
Maximum width: 4 m
Beam height: 212 mm + 130 mm opening for slats
Drainage system: Yes
Standard profile colors:
- RAL 9016 matt
- FSM 71319
- RAL 7016 matt
