Pergola SUNBEAM 500

Pergola SUNBEAM 500 icon

In stock

Get a tailored price offer
I am interested

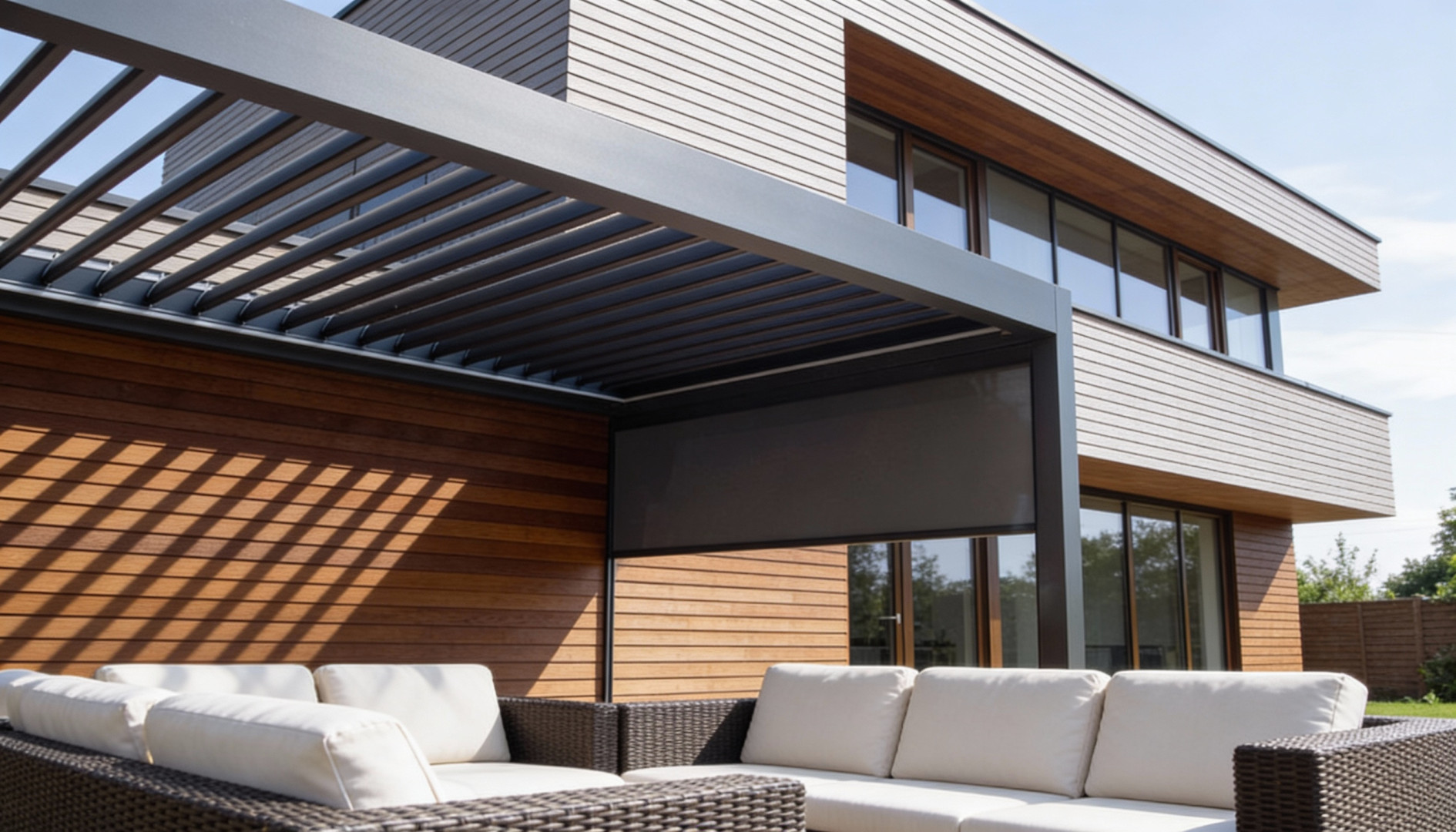

The bioclimatic pergola SB 500 is a modern solution for shading and protecting outdoor spaces with an emphasis on quality, design and functionality. It is designed to reliably withstand sun and rain while creating a pleasant place to relax throughout the year.

The structure consists of a combination of extruded aluminum profiles, which guarantee high strength and durability. All parts of the pergola are painted in RAL color, thanks to which it can be adapted to the architecture of the house or exterior.

The roof of the pergola consists of slats with an adjustable angle of inclination (90° or 120° depending on the motor model), which allow you to regulate the amount of light and air flow. During rain, the slats close automatically and the integrated drainage system safely drains water into the columns to keep the space under the pergola dry.

The SB 500 pergola offers a wide range of customization options - from wall-mounted or free-standing designs to modular extensions for larger areas. The maximum dimensions of one module reach 5 m in width and 7 m in extension, and there is also the possibility of adding a sliding door to the pergola.

For greater comfort, the pergola can be equipped with LED lighting around the perimeter of the structure or with light points directly in the slats. Solar power and weather-compensated automation that reacts to wind or rain are also available.

Benefits

kvalita
Increases the covered space
kvalita
Protects against the weather
kvalita
New meeting space
kvalita
Corrosion resistant

Features:

  • Construction of extruded aluminum profiles and steel elements
  • Construction equipped with a water drainage system
  • Sun and rain protection system
  • Construction and roof painted in any RAL color (optional)
  • Roof made of slats with the possibility of changing the angle of inclination
  • Maximum dimensions of one module: width 5.0 m, extension 7.0 m
  • Minimum dimensions of one module: width 1.4 m, extension 2.0 m
  • Possibility of modular expansion
  • Possibility of wall-mounted and free-standing construction
  • Possibility of using the SLIDE sliding door system up to a height of 2.8 m
  • Construction in accordance with EN 1090 and EN 13659 standards
  • Optional LED lighting around the pergola or light points in the slats
  • Optional solar drive
  • Possibility of using automation with weather compensation
  • Slat rotation angle 90º or 120º (depending on the motor model)
  • Color: RAL

Electric drive: Yes

Maximum extension: 7 m

Maximum width: 5 m

Beam height: 290 mm + 150 mm opening for slats

Drainage system: Yes

Standard profile colours:

  • RAL 9016 matt
  • FSM 71319
  • RAL 7016 matt
