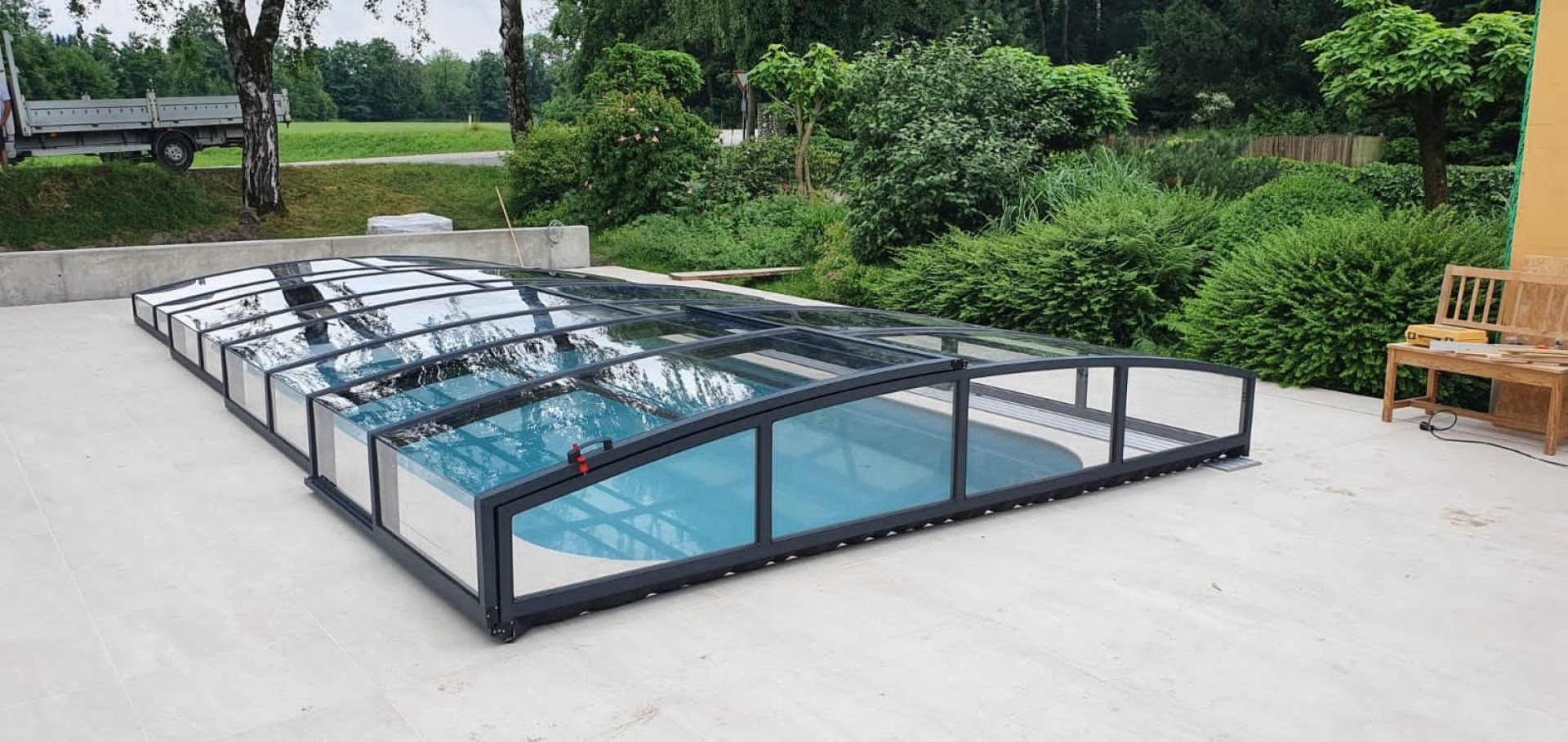

Pool cover STAR

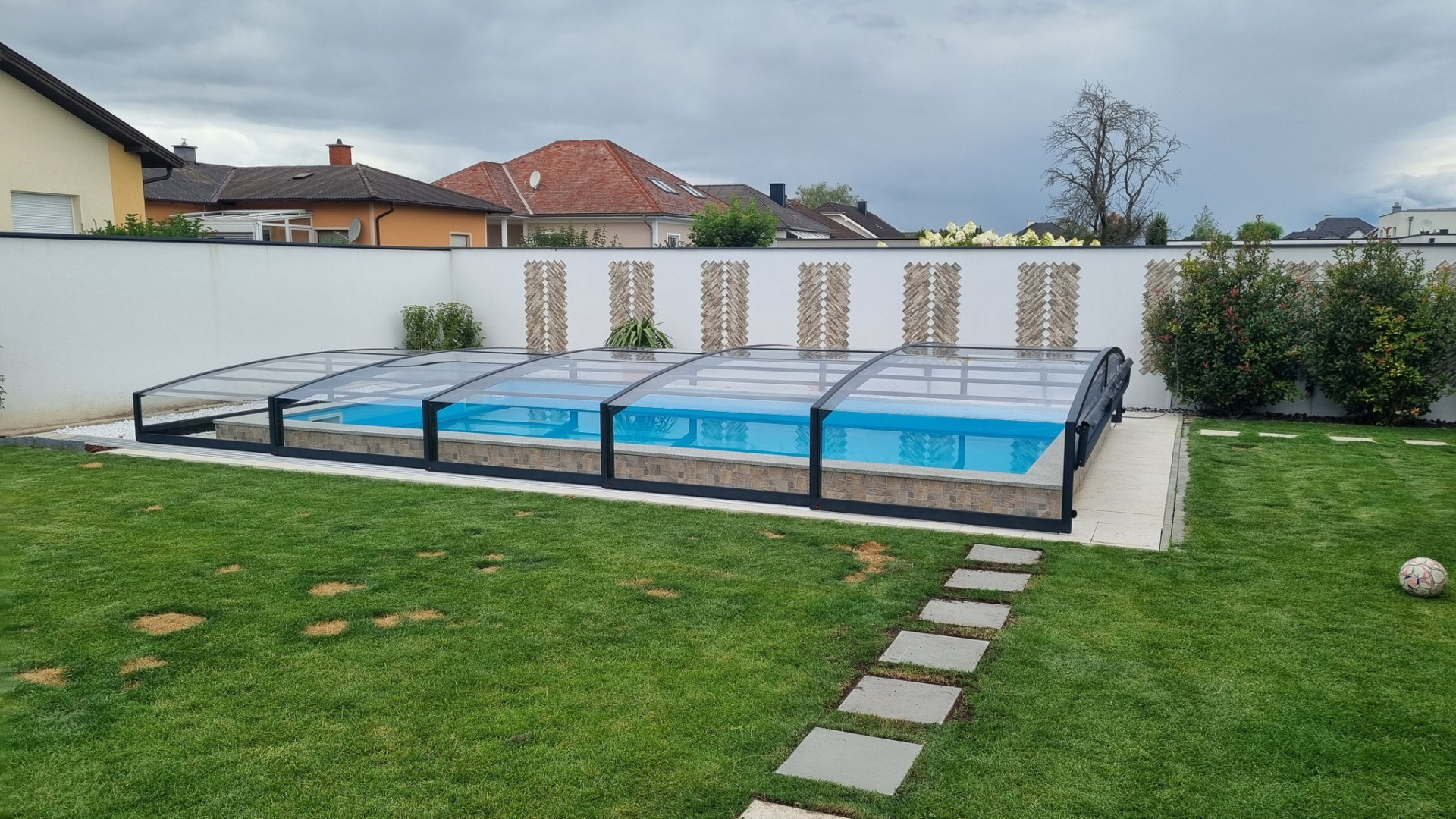

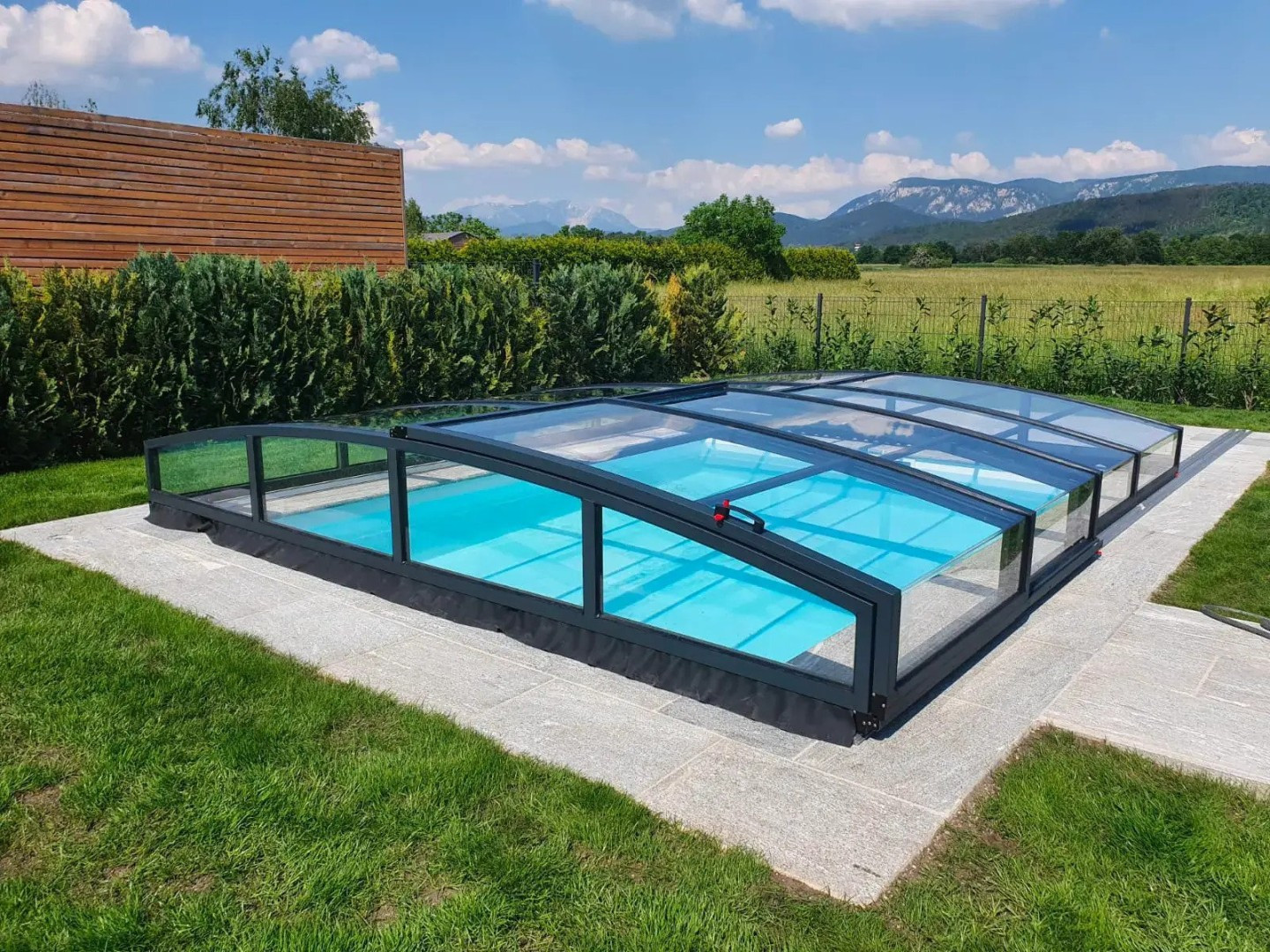

Model STAR is characterized by its atypical shape with perpendicular side walls and very low height. Its unique design predestines it for success in a modern garden. The height of the STAR pool roof is from 480 mm in the smallest segment (depending on the number of segments and the width of the pool roof).
Benefits
Technical information
 |
Segment width 3000 - 5000 mm |
 |
Anthracite and gray colors are included in the price |
 |
Two-way sliding of segments along the entire length of the track |
 |
Side or front doors available |
 |
Two-track slide |
 |
Filling 3mm full polycarbonate |
Construction of the STAR pool roof
We produce the STAR model with dimensions from 3000 to 5000 mm internal width.
The possible number of segments is 2 - 7.
The joints in the corners are glued with special glue.
Full polycarbonate with a thickness of 3 mm is used as a standard.
The track is walkable with bare feet.
Walking track in silver anodized color with a height of 16 mm.
Manual locking
Manual locking in each segment, which must be unlocked when the pool is uncovered. All arresters are locked automatically when closed.
| Number of segments | Standard segments | Shorter segments | Atypical |
| 2 | 4310 mm | 3 410 mm | - |
| 3 | 6 440 mm | 5 080 mm | - |
| 4 | 8 570. 7500 mm | 6 760 mm | 7 500 mm |
| 5 | 10 700 mm | 8 430 mm | - |
| 6 | 12 810 mm | 10 100 mm | - |
Manual locking of the pool roof
The pool roof has a manual lock in each segment, which ensures safety during handling, and which must be unlocked before uncovering the pool. All arresters are automatically locked when closed.

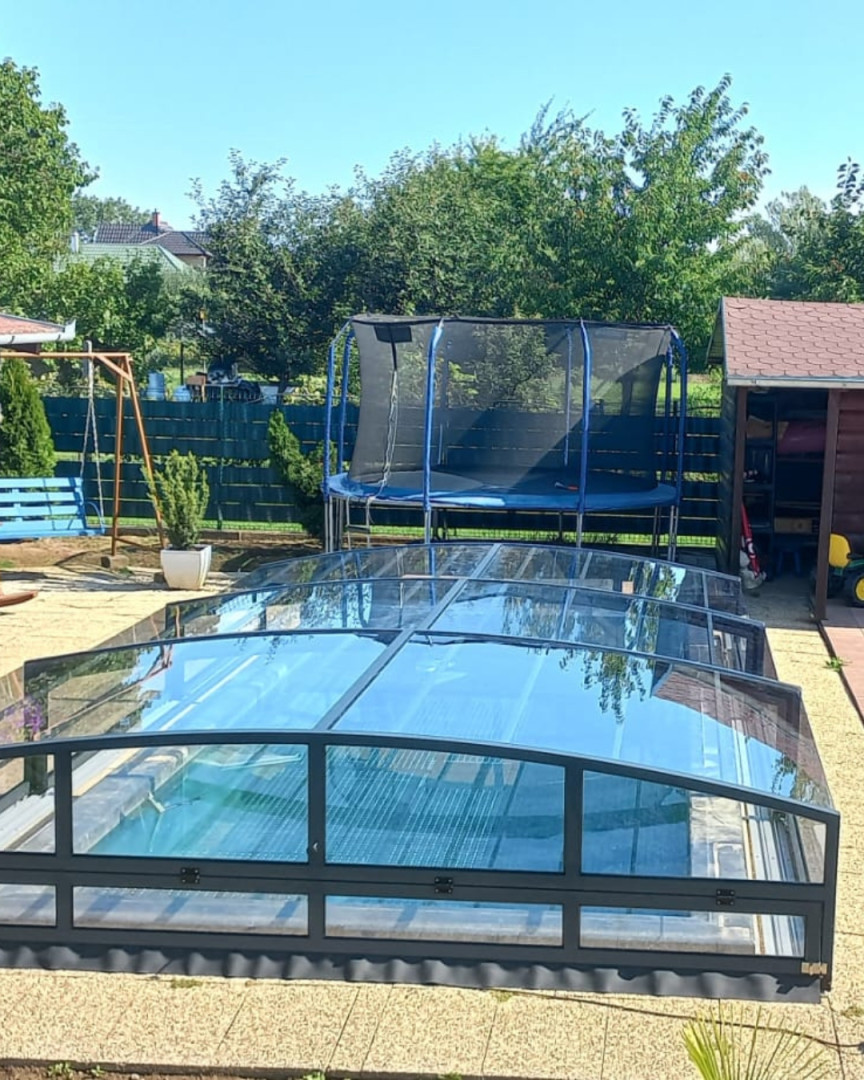

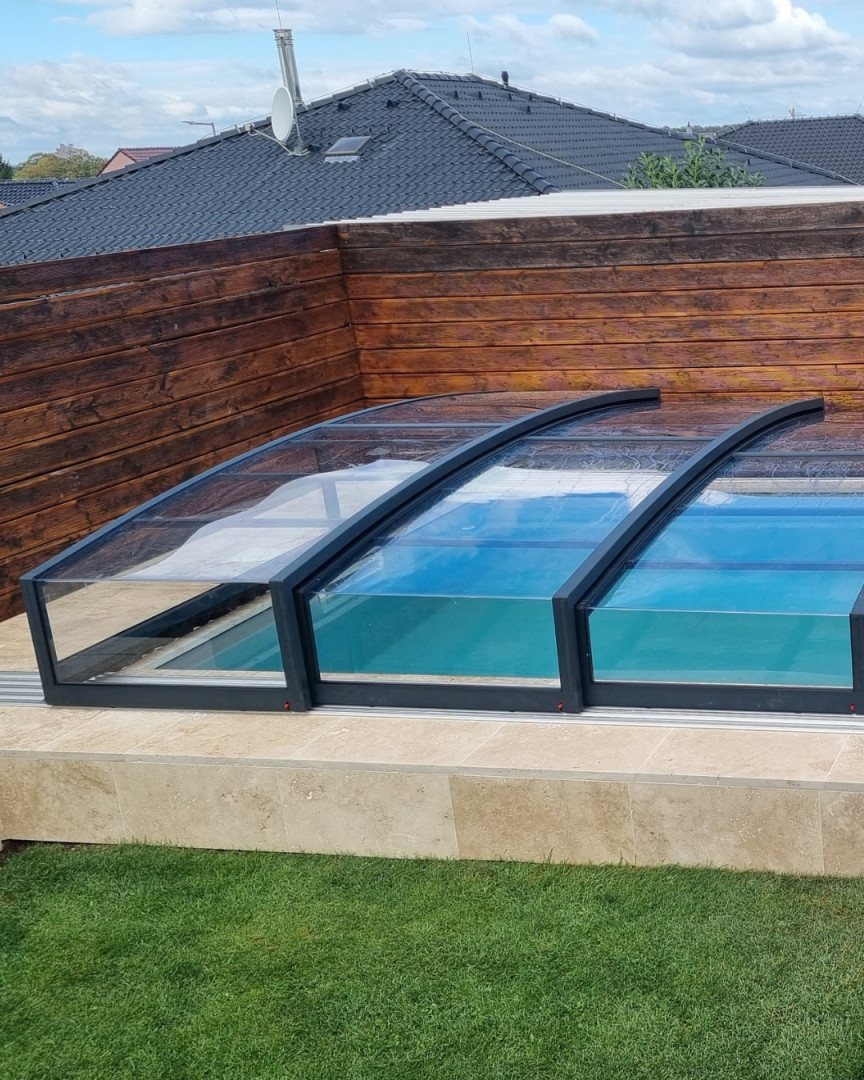

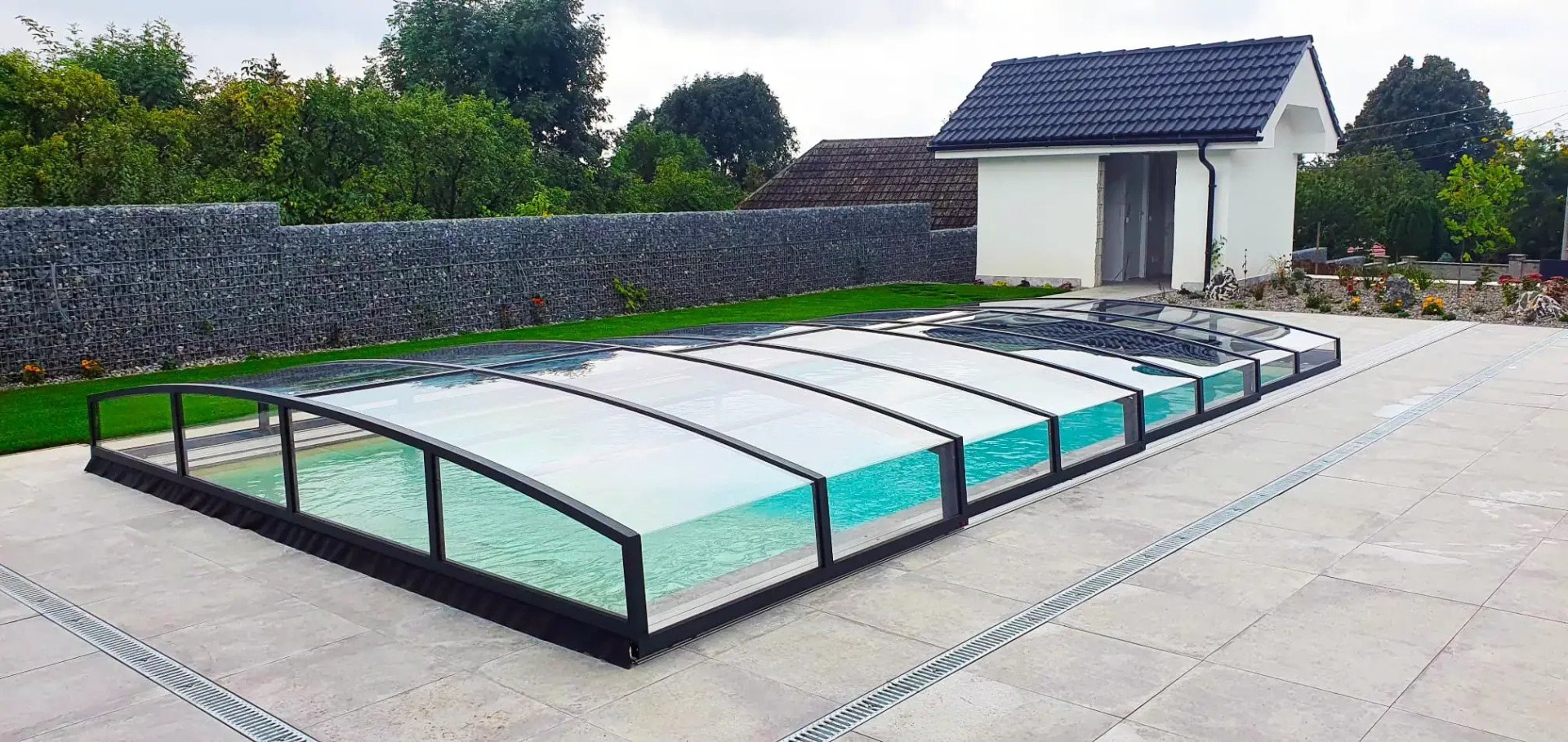

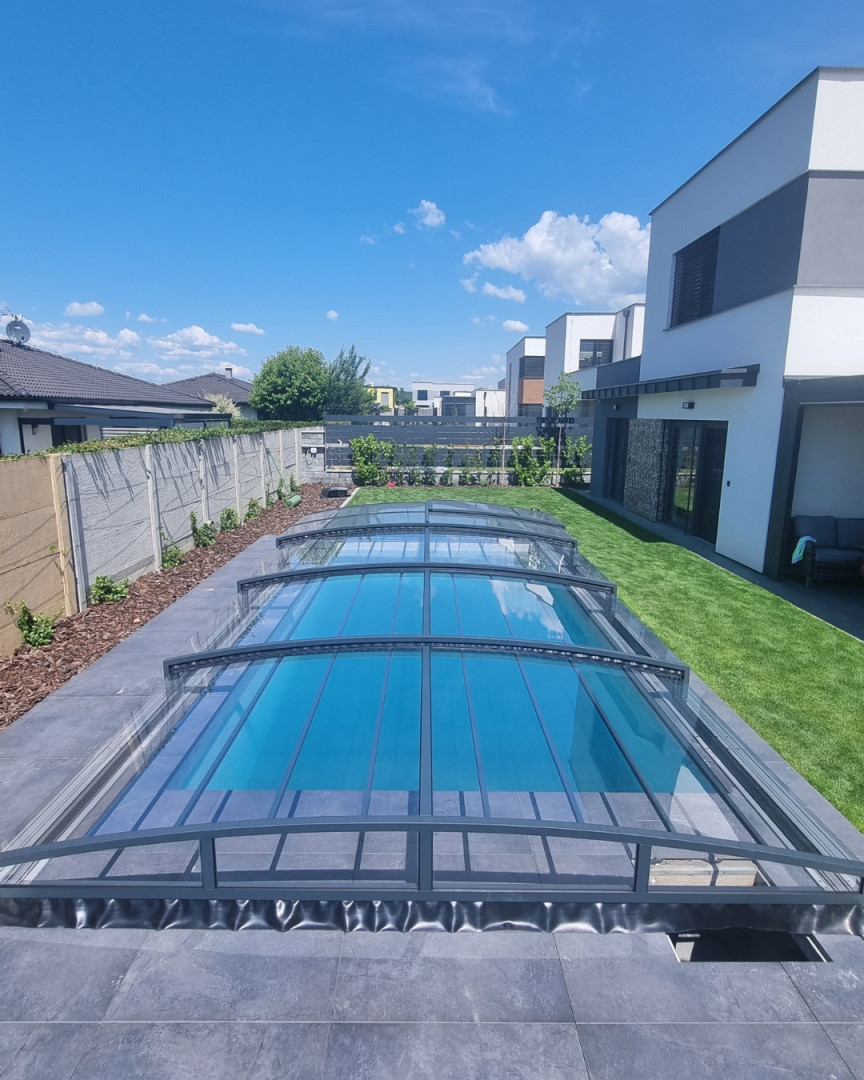

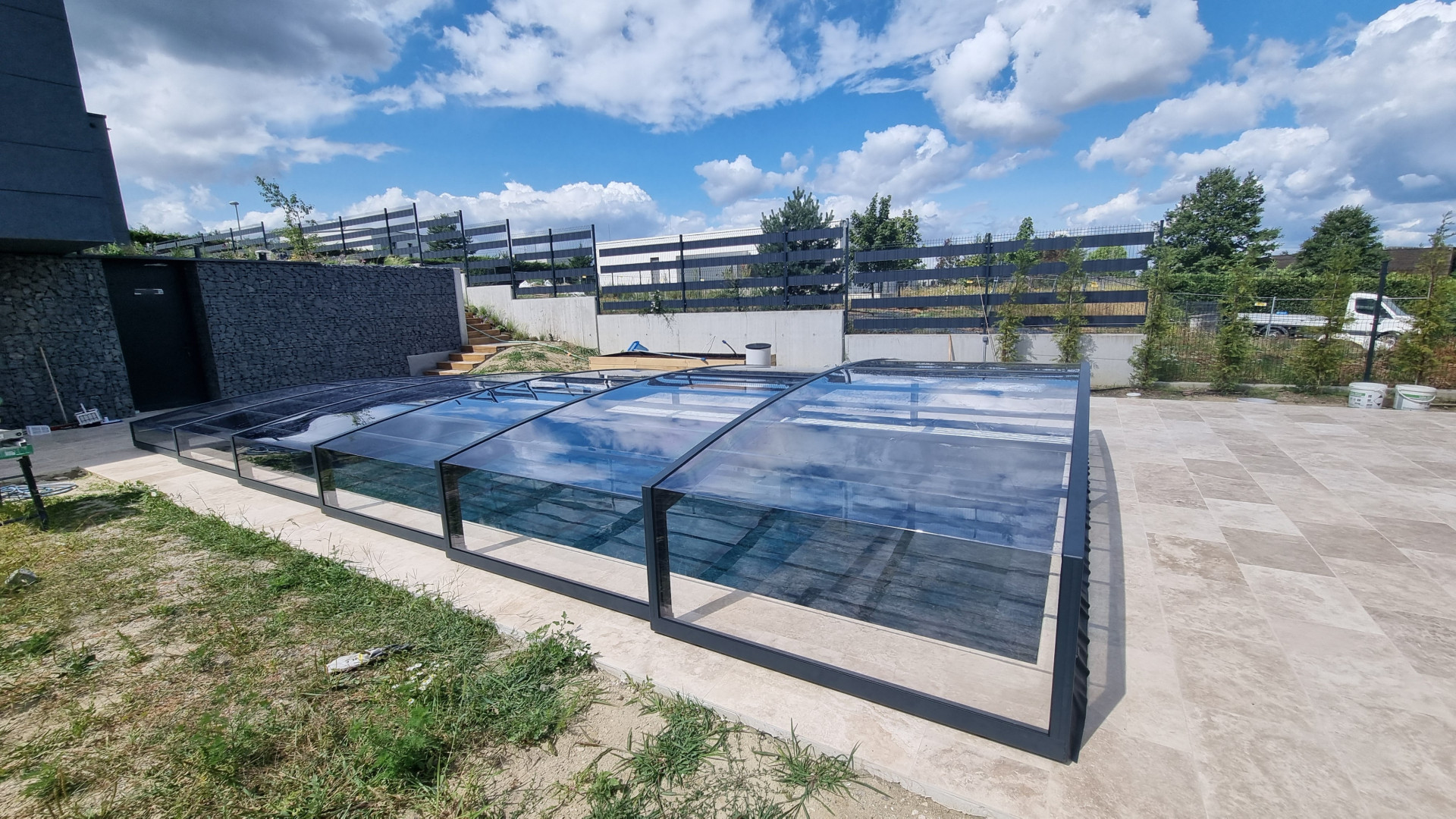

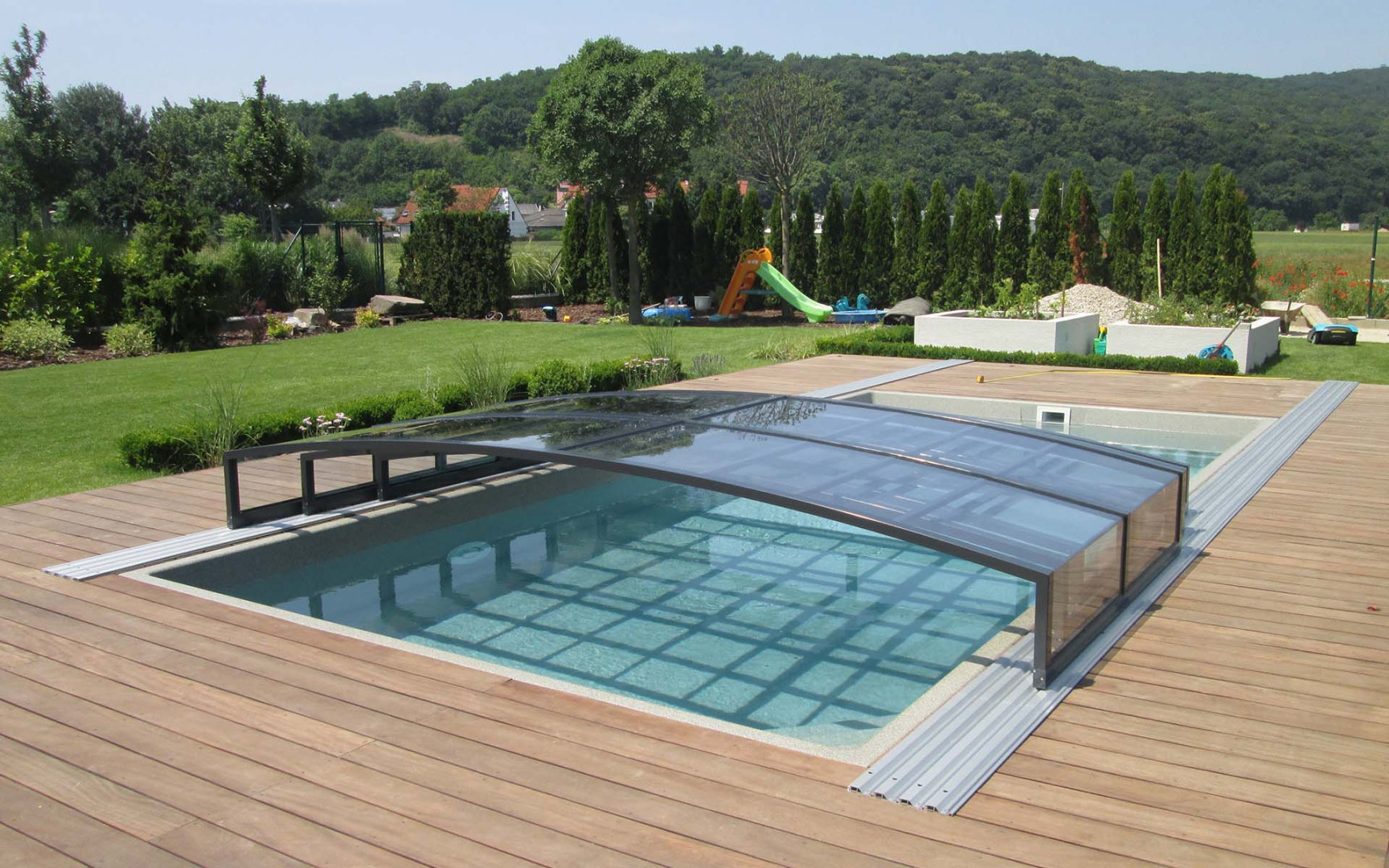

Product realizations
Take a look at some of our realizations and get an overview of the quality of our production
Bazénové zastrešenie modelu STAR
POOL OVERLAY STAR 05
STAR base overlay - Austria 01

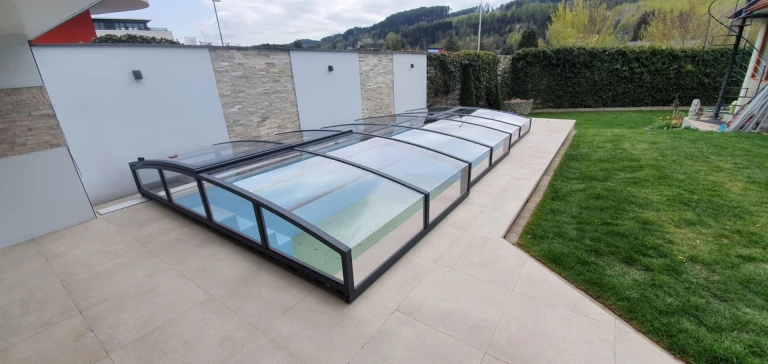

Pool cover STAR - Skalica
